High-Speed Wood Panel Flow Coating Machine for Factory Flooring: Durable Finish & Mass Production Coating Line
Produktdetails:
| Herkunftsort: | China |
| Markenname: | OSMANUV |
| Zertifizierung: | ISO9001 |
| Modellnummer: | OSM-LT-1320 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 Set |
|---|---|
| Preis: | negotiable |
| Verpackung Informationen: | Holzverpackung |
| Lieferzeit: | 40 Tage |
| Zahlungsbedingungen: | T/t |
| Versorgungsmaterial-Fähigkeit: | Verhandlung |
|
Detailinformationen |
|||
| Stromversorgung: | 380 V/50 Hz, dreiphasiges Fünf-Draht-System | Übermittlung von Richtung: | Von links nach rechts |
|---|---|---|---|
| Zustand: | Neu | Garantie: | 1 Jahr |
| Produktname: | Vorhangbeschichtungsproduktlinie | Geschwindigkeit der Produktionslinie: | 0 bis 10 m/min |
| Die Übertragung ist begrenzt breit: | 1320mm | ||
| Hervorheben: | wood panel flow coating machine,high-speed curtain coating machine,factory flooring coating line |
||
Produkt-Beschreibung
High-Speed Wood Panel Flow Coating Machine for Factory Flooring: Durable Finish & Mass Production Coating Line
Product Description:
Our high-speed automated flow coating line is engineered for furniture panel, door skin, and laminate flooring manufacturers seeking unparalleled throughput. This system delivers a consistent, high-gloss, or satin finish with exceptional durability, ideal for high-volume production environments. The entire process, from feeding to curing, is seamlessly integrated for maximum efficiency and minimal downtime.
Technical Parameters:
| Parameter Category | Details & Specifications |
|---|---|
| Dimensions | 6000mm L × 2200mm W × 1400mm H |
| Belt Height from Ground | 850-900mm adjustable |
| Total Weight | 2000 kg |
| Coating Width | 1320 mm |
| Processing Thickness | 3-80 mm |
| Minimum Processing Length | 300 mm |
| Conveyor Power | 2.2 kW |
| Oil Pump Power | 2.2 kW |
| Paint Consumption | 60-200 g/m² |
| Paint Tank Capacity | 250 kg |
Application:
Mass production of furniture panels, kitchen cabinets, laminate flooring, door skins, and wall panels.
Feature:
- Ultra-High Speed Coating for maximum output.
- Precision Coating Head for uniform film thickness.

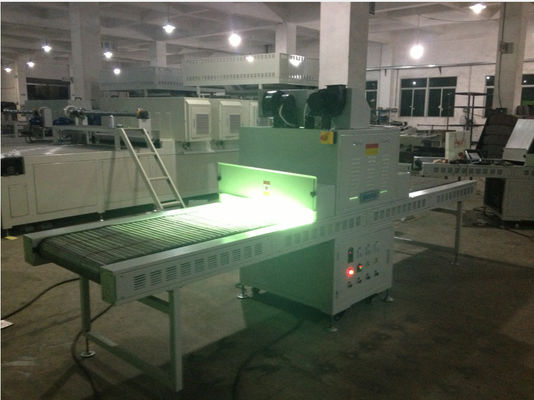

- Energy-Efficient UV Curing System.
- Fully Automated Conveyor System with automated feeding and stacking.
Customization:
We offer extensive customization options including line length, conveyor width, coating tank capacity, and specific curing solutions to match your factory layout and product requirements perfectly.
Support and Services:
Comprehensive package including installation supervision, operator training, remote troubleshooting, and an extensive inventory of spare parts for prompt delivery.
Packing and Shipping:
All modules are crated in heavy-duty wooden frames with waterproof wrapping for sea freight. Professional export packing ensures safe arrival.
FAQ:
- Q: Can this line handle different panel sizes without lengthy changeovers?
A: Yes, the conveyor and coating system are designed for quick width adjustments to accommodate various panel sizes, minimizing downtime.
