Multi-Purpose Roller Coating Machine for Wood & Plastic Panel Finishing: Customizable Paint Line for Varied Substrates

Min Bestellmenge:	1Set
Preis:	negotiable
Verpackung Informationen:	Holzverpackung
Lieferzeit:	45 Tage
Zahlungsbedingungen:	T/t
Versorgungsmaterial-Fähigkeit:	Verhandlung

Bestpreis Kontakt

Detailinformationen
Produktname:	Produktionslinie für Walzkleidung	Die Übertragung ist begrenzt breit:	1320mm
Geschwindigkeit der Produktionslinie:	1-20 m/min	Kapazität einzelner Klassen:	13000pcs/hour
Elektrische Leistung:	136,85 kW	Produktionszyklus:	45 Tage
Hervorheben:	roller coating machine for wood panels , customizable paint line roller coater , multi-purpose roller coating equipment

Produkt-Beschreibung

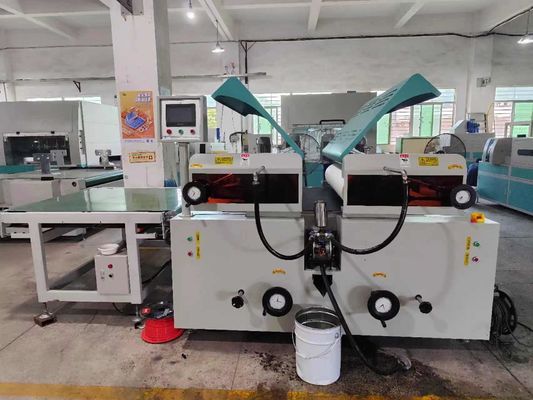

Multi-Purpose Roller Coating Machine for Wood & Plastic Panel Finishing: Customizable Paint Line for Varied Substrates

Composition of Production Line:
A flexible modular system featuring a manual loading station, adjustable roller coater head with quick-release mechanism, interchangeable roller sets, flexible drying section (UV or IR), and manual unloading.
Product Description:
This versatile and highly customizable roller coating line is ideal for R&D centers, job shops, and manufacturers who work with a wide variety of products, substrates, and coatings. It allows for quick changeover between jobs, from applying thin finishes on wood to heavier coats on plastic composites. Its modularity allows for future expansion and reconfiguration.
Technical Parameters:

Parameter Category	Details & Specifications
Model	MRC-2000-Flex
Suitable Substrate	Wood, Plastic (PVC, APA), Aluminum Composite Panel
Coating Method	Direct & Reverse Roller Coating (**
Max. Substrate Width	2000 mm (Customizable)
Roller Changeover Time	< 15 minutes (with quick-release)
Coating Type	UV, Water-Based, Solvent-Based, Adhesives
Drying/Curing	Modular UV Spot Curing or IR Tunnel (Customizable)
Control System	User-friendly interface with programmable settings

Application:
Small batch production, prototyping, applying specialty finishes, coating diverse materials like plastic panels or metal composites.

Customization:
This is our most customizable line. The core strength is its flexibility: choose from different roller head types, roller materials, and drying modules to create the exact system you need.
Feature:
- Unmatched Flexibility: Quick changeover between coatings and substrates.
- Interchangeable Heads: Switch from direct to reverse coating quickly.
- R&D Friendly: Perfect for testing new materials and finishes.
- Modular Design: Start with a basic setup and expand later.
Support and Services:
Application testing support, process development consultancy, and extensive operational training.
Packing and Shipping:
Shipped as complete kits with all interchangeable parts clearly labeled. Comprehensive manual with setup videos is provided.
FAQ:
Q: How difficult is it to change the rollers for a different coating?
A: Our system is designed for ease of use. With the quick-release mechanism and color-coded parts, an operator can be trained to change the entire roller set and clean the head in under 15 minutes, minimizing downtime between jobs.
