High-Efficiency Infrared Drying Line for Furniture Board & Molded Pulp Products - Precision Thermal Solution
Produktdetails:
| Herkunftsort: | CHINA |
| Markenname: | Osmanuv |
| Zertifizierung: | ISO9001 |
| Modellnummer: | OSM-UV-1320T |
| Dokument: | 5 Meters IR Drying Machine.pdf |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 Set |
|---|---|
| Preis: | negotiable |
| Verpackung Informationen: | Holzkiste |
| Lieferzeit: | 35 Tage |
| Zahlungsbedingungen: | T/t |
| Versorgungsmaterial-Fähigkeit: | Verhandlung |
|
Detailinformationen |
|||
| Timereinstellung: | 1-60 Minuten | Worktable: | Schwebend |
|---|---|---|---|
| Funktion: | Plastikbecher schneller Trockner | Luftströmungsrichtung: | Horizontal/vertikal |
| Förderbandgeschwindigkeit: | 10-30 m/min | Ausgangstemperatur: | 80 bis 250 Grad |
| Automatische Note: | Automatisch | ||
| Hervorheben: | infrared drying machine for furniture board,infrared drying line with thermal precision,molded pulp infrared drying system |
||
Produkt-Beschreibung

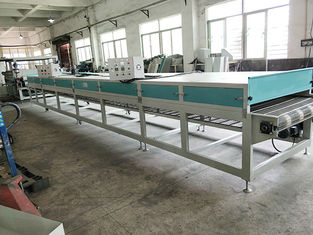

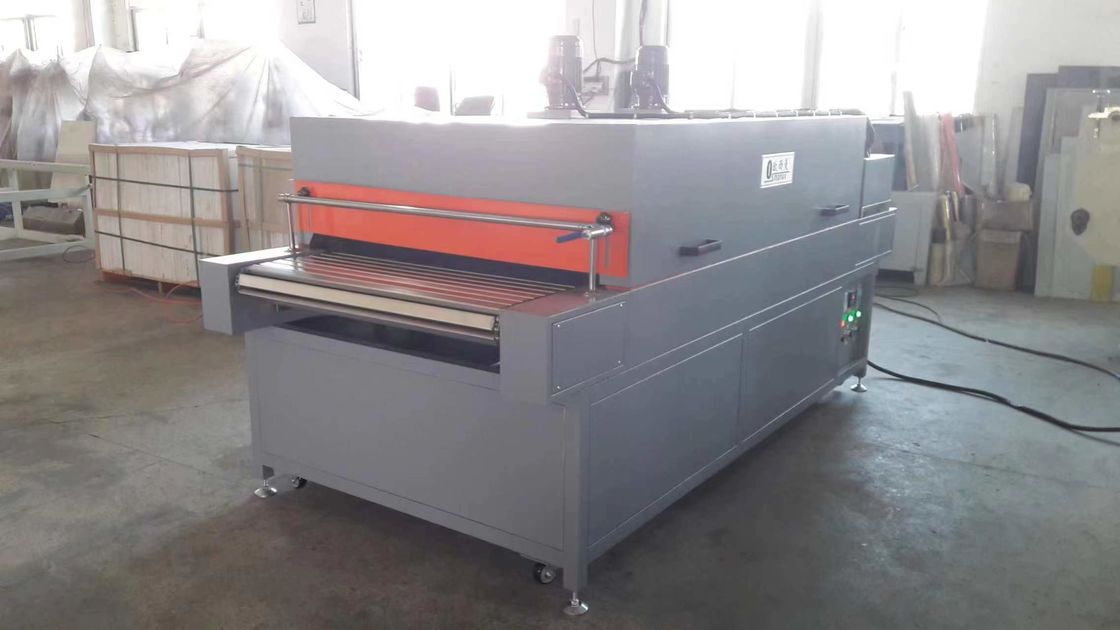

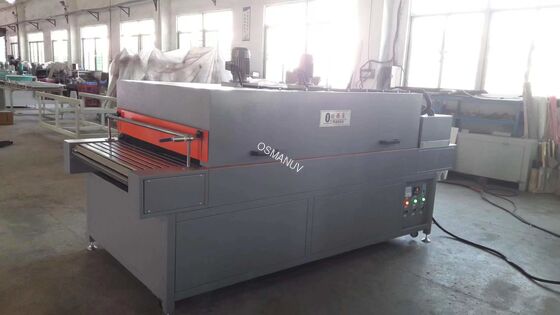

High-Efficiency Infrared Drying Line for Furniture Board & Molded Pulp Products - Precision Thermal Solution
Keywords: infrared drying line, furniture board drying, molded pulp dryer, customizable IR drying, industrial infrared oven
Composition of Production Line:
Infrared pre-heating section, main IR drying tunnel, heat circulation system, temperature control cabinet, conveyor system, cooling section, PLC control panel
Product Description:
This advanced infrared drying line provides precise and efficient drying for both furniture boards and molded pulp products, offering superior energy efficiency and uniform heating compared to conventional drying methods.
Technical Parameters:
| Parameter | Specification |
|---|---|
| Heating Technology | Medium-wave infrared emitters |
| Temperature Range | 50-400°C (customizable) |
| Belt Width | 600-2000mm (customizable) |
| Drying Speed | 0.5-5 m/min (adjustable) |
| Power Supply | 380V/50Hz/3Phase (configurable) |
| Control System | Siemens PLC + 10" HMI touchscreen |
| Heating Power | 30-200kW (customizable) |
Application:
Drying of furniture boards (MDF, HDF, particleboard), molded pulp packaging, and industrial fiber products.
Customization:
Fully customizable infrared emitter layout, belt specifications, heating zones, and control system configuration.
Feature:
-
40% energy saving compared to conventional drying
-
Precise temperature control (±1°C)
-
Quick response and easy maintenance
-
Uniform heating without surface damage
Support and Services:
Installation supervision, operator training, 24/7 technical support, spare parts supply
Packing and Shipping:
Modular design for easy shipping, weather-proof packaging, FOB/CIF terms available
FAQ:
Q: Can the line handle different product thicknesses?
A: Yes, the system is fully customizable for various product specifications.
