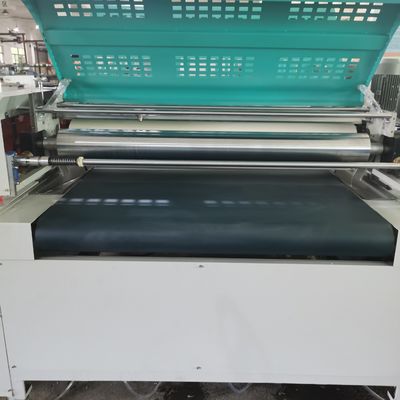

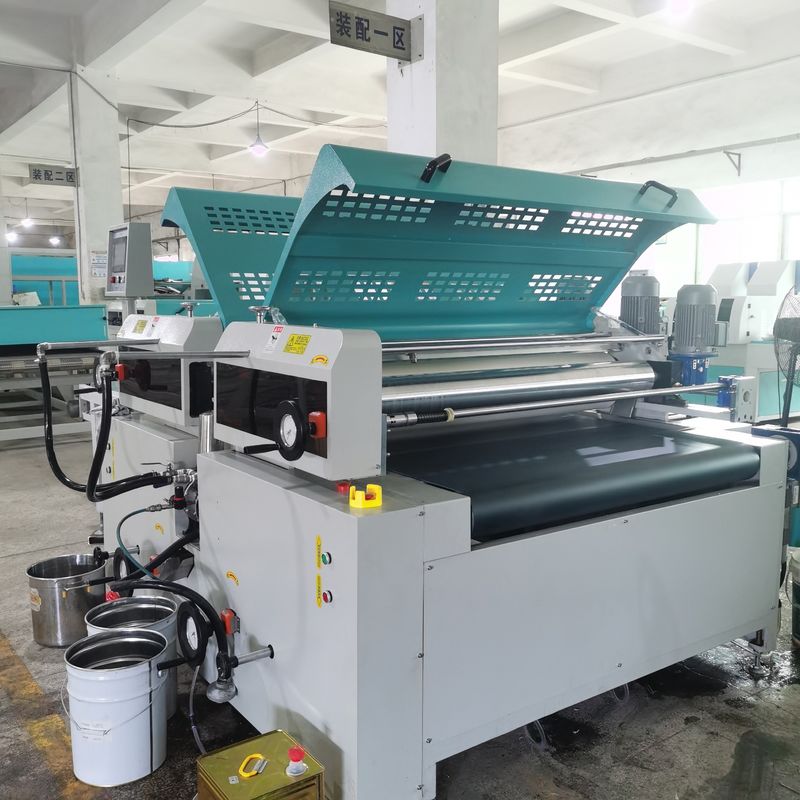

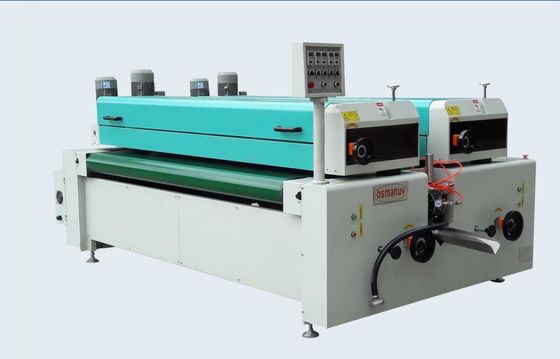

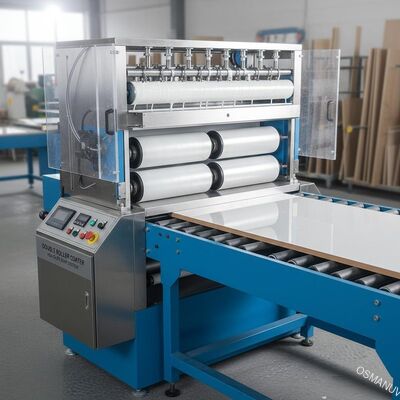

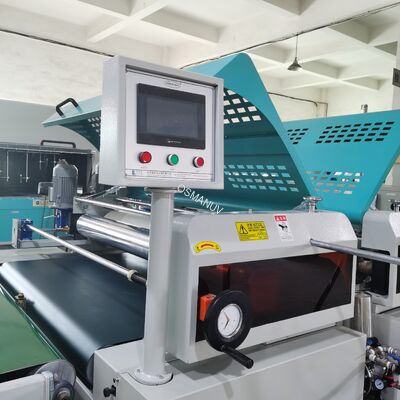

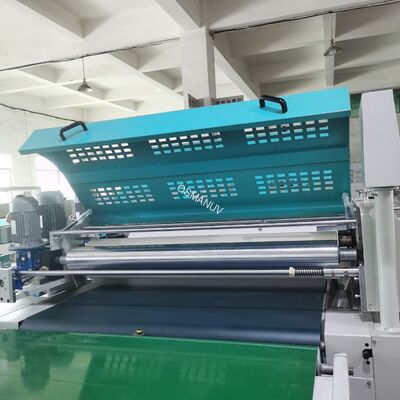

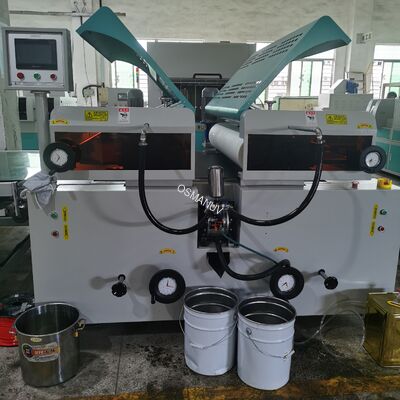

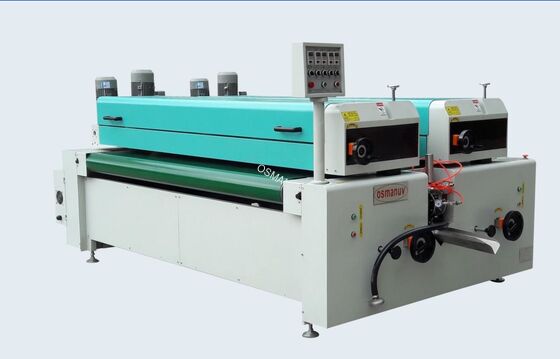

Doppelwalzbeschichtung für Möbelplatten Oberflächenveredelung Hochglanzfarbe Anwendungssystem
double roller coating machine for furniture
,high gloss paint application system
,panel surface finishing roller equipment
Diese Präzisions-Doppelwalzen-Beschichtungsmaschine wurde speziell für das Auftragen von Hochglanz- und Mattlackierungen auf Möbelplatten wie MDF, Spanplatten und Sperrholz entwickelt. Die Maschine gewährleistet durch ihr synchronisiertes Walzensystem eine gleichmäßige Schichtdicke und eine hervorragende Oberflächenqualität und eignet sich daher ideal für die Massenproduktion von Möbelkomponenten und Architekturplatten.
| Parameter | Spezifikation |
|---|---|
| Modell | OSM-GT-1600Ⅱ |
| Beschichtungsbreite | 1600 mm(Anpassbar) |
| Rollenmaterial | Präzisionsstahl mit Verchromung |
| Beschichtungsdicke | 10-200 μm (einstellbar) |
| Liniengeschwindigkeit | 1-15 m/min |
| Stromversorgung | 380V/3Phase/50Hz |
| Kontrollsystem | SPS + 10-Zoll-HMI-Touchscreen |
Großvolumige Beschichtung von Möbelplatten, Schranktüren, Wandpaneelen und anderen flachen Holzsubstraten in der Möbelherstellung und Innendekorationsindustrie.
- AnpassbarBeschichtungsbreite von 1500 mm bis 3200 mm
- AnpassbarWalzenhärte für verschiedene Beschichtungen
- AnpassbarIntegration des Trocknungssystems
- Perfekte Dickenkontrolle
- Hohe Übertragungseffizienz
- Einfaches Rollenwechselsystem
- Minimaler Wartungsaufwand
- Installation und Inbetriebnahme
- Bedienerschulungsprogramm
- 24 Monate Garantie
- Technischer Fernsupport
- Wetterfeste Holzkiste
- Stoßdämpfende Verpackung
- Professionelle Exportstandards
-
