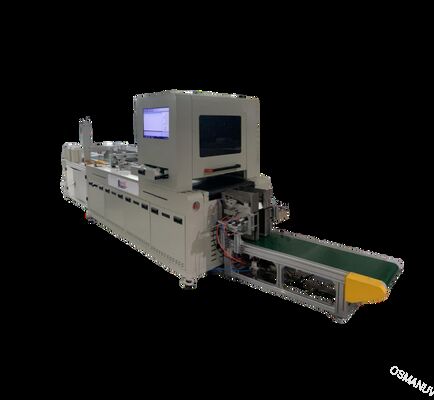

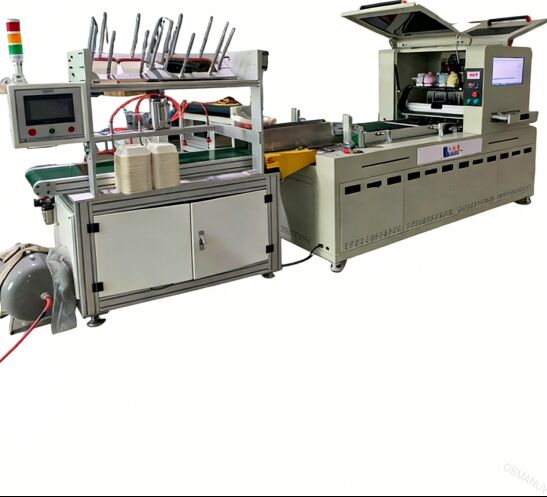

Industrial OnePass Inkjet Printer with Customizable Parameter Configuration for Direct Printing on Curved Pulp Molding Surfaces
Produktdetails:
| Herkunftsort: | China |
| Markenname: | OSMANUV |
| Zertifizierung: | ISO9001 |
| Modellnummer: | Spezifikation |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 Satz |
|---|---|
| Preis: | Verhandelbar |
| Verpackung Informationen: | Holzverpackung |
| Lieferzeit: | 30-45 Tage |
| Zahlungsbedingungen: | T/T |
| Versorgungsmaterial-Fähigkeit: | Verhandlung |
|
Detailinformationen |
|||
| Automatische Note: | Automatisch | Stromversorgung: | 380VAC/50HZ |
|---|---|---|---|
| Maschinenprüfbericht: | Bereitgestellt | Schreibköpfe: | EPSON S3200 3 Stück |
| Beschichtung Qty: | 10 ~ 16g/m² | Drehendes Gerät: | unter Verwendung des Drehens 90º elektrisch |
| Gewicht: | 1200 KG | Produkt: | SPC-Boden |
| Beschichtungseffizienz: | Hohe Effizienz | ||
Produkt-Beschreibung
Industrial OnePass Inkjet Printer – Customizable Parameter Configuration for Pulp Molding Mass Production
This OnePass digital printer is specifically designed for pulp molded products (trays, clamshells, inserts, egg trays, industrial liners). It enables direct printing on curved and uneven surfaces without pre-coating. The customizable settings allow adjustments of print speed, ink volume, vacuum pressure, and curing intensity to match different pulp densities and shapes. Ideal for short to medium runs with variable data printing capability.
Technical Parameters
| Parameter | Specification |
|---|---|
| Print Technology | OnePass Piezo Inkjet (Kyocera/Sapphire) |
| Max Print Width | 300 mm / 500 mm / customizable |
| Media Thickness Range | 1 - 15 mm (pulp molding) |
| Resolution | Up to 600 x 600 dpi |
| Print Speed | Up to 60 m/min (variable, customizable) |
| Ink Type | Water-based / UV-curable (odorless) |
| Ink Colors | CMYK + optional white/varnish |
| Drying System | LED-UV or hot air (configurable) |
| Substrate Flattening | Vacuum belt + mechanical press (optional) |
| Power Supply | 380V, 50/60 Hz, 12 kW |
| Dimensions (L×W×H) | 5200 × 1800 × 1650 mm (standard, customizable) |
Applications
- Molded pulp food trays & coffee cup lids
- Electronic component pulp trays (anti-static optional)
- Cosmetic pulp boxes & clamshells
- Industrial pulp liners & cushion packaging
- Egg trays & fruit trays with brand printing
- Custom shapes: customizable size & cavity depth
Customization Options
- Print width extension up to 800 mm
- Custom fixture tooling for non-flat products
- Ink recipe adjustment for different pulp fiber types (bamboo, sugarcane, wood)
- Software plugin for variable data (batch codes, QR, logos)
- Vacuum table design matched to your tray geometry
- Drying profile tailored to production humidity and speed
Key Features
- Direct printing on rough/porous pulp surfaces (no pre-coating required)
- One-pass printing with automatic thickness compensation
- Low waste (digital job change without plate making)
- Customizable print masks for edge-to-edge coverage
- Real-time droplet adjustment for non-flat topography
- Eco-friendly ink (FDA compliant for food contact available)
Support and Services
- Remote online setup & calibration (24/7 response)
- On-site installation and operator training (included)
- Lifetime technical consultation for customizable production upgrades
- Spare parts kit with next-day air shipping
- Local service partners in EU, NA, SEA (regular expansion)
Packing and Shipping
- Packing: Wooden fumigated export case with anti-vibration foam + moisture barrier
- Package dimensions: 5600 × 2000 × 1850 mm (standard one printer module)
- Shipping modes: FOB / CIF (air or sea)
- Delivery time: 25-35 working days after design confirmation (customizable lead time)
- Partial shipment available for long production lines (feeder -> printer -> stacker)
Frequently Asked Questions
Q1: Can the printer handle deep-draw pulp molding trays?
A: Yes, with customizable vacuum platen and print head height adjustment up to 15 mm.
Q2: Is the ink suitable for food contact packaging?
A: UV-curable low-migration inks are available upon request. Customizable ink formula for food safety standards (EU/US).
