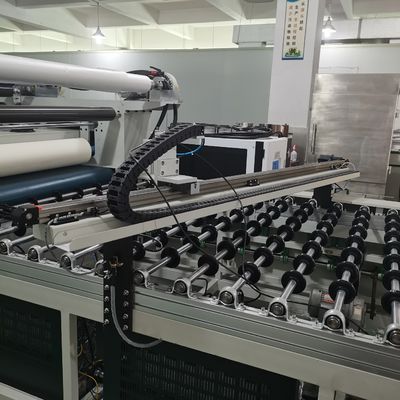

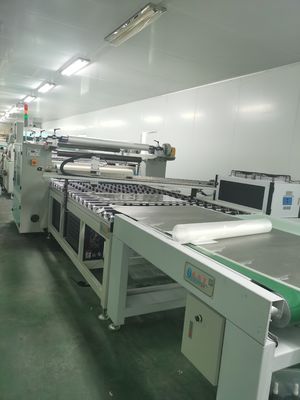

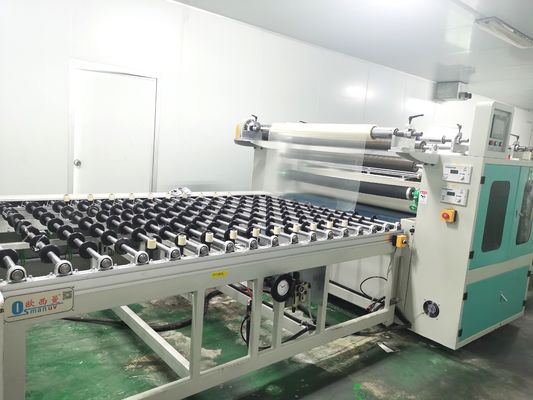

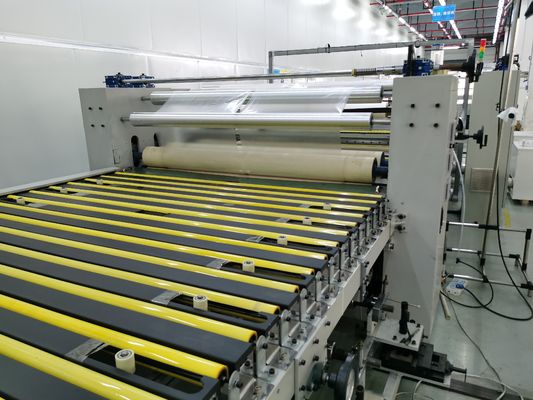

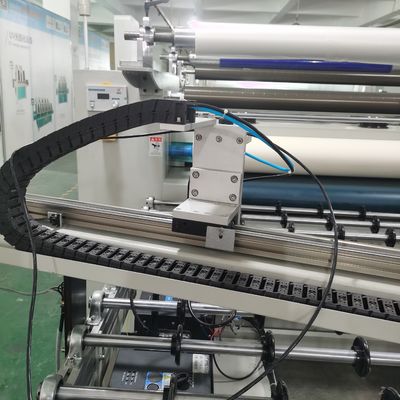

High-Speed 30m/min Roll-to-Roll Laminating Machine with Bubble-Free Lamination and Customizable Width
Produktdetails:
| Herkunftsort: | China |
| Markenname: | OSMANUV |
| Zertifizierung: | ISO9001 |
| Modellnummer: | Spezifikation |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 Satz |
|---|---|
| Preis: | Verhandelbar |
| Verpackung Informationen: | Holzverpackung |
| Lieferzeit: | 30 Tage |
| Zahlungsbedingungen: | T/T |
| Versorgungsmaterial-Fähigkeit: | Verhandlung |
|
Detailinformationen |
|||
| Automatische Note: | Halbautomatisch | Druck: | 3~8Mpa |
|---|---|---|---|
| Angetriebener Typ: | elektrisch | Deckungspräzision: | ≤±2mm |
| Maximale Geschwindigkeit: | 0-30 m/min | Typ: | Laminator für Rollen |
| Papiergewicht: | 127-450g | ||
| Hervorheben: | high-speed roll-to-roll laminating machine,bubble-free film laminating machine,customizable width laminating machine |
||
Produkt-Beschreibung
High-Speed Roll-to-Roll Laminating Production Line | Customizable Width & Rewind Tension | Bubble-Free Surface Lamination
Product Overview
This surface laminating machine applies protective or decorative film onto flat substrates such as paper, cardboard, plastic sheet, aluminum composite panel, and photo paper. It supports both hot and cold lamination, preventing scratches, moisture, UV damage, and fingerprints. The machine is highly customizable in roller width, film type, heating profile, and tension control system. Ideal for printing houses, packaging factories, and signage manufacturers seeking bubble-free, high-transparency lamination.
Technical Specifications
| Parameter | Standard Specification | Customizable Options |
|---|---|---|
| Max laminating width | 650 mm | Yes - 350 mm to 1600 mm |
| Substrate thickness range | 0.1-5 mm | Yes - up to 15 mm (adjustable roller gap) |
| Lamination speed | 0-8 m/min | Yes - 0-15 m/min (servo motor option) |
| Roller diameter | 80 mm (upper) / 80 mm (lower) | Yes - 100-150 mm for thicker film |
| Roller material | Silicone (standard) | Yes - EPDM / NBR / steel (heated) |
| Heating method | Infrared + quartz tube | Yes - oil heating / ceramic heating |
| Max heating temperature | 120°C | Yes - 150°C or 200°C |
| Film types supported | BOPP, PVC, PET, thermal lamination film | Yes - biodegradable film / anti-UV film |
| Power supply | 220V / 50Hz / 1-phase | Yes - 110V / 60Hz or 380V 3-phase |
| Machine dimensions (L×W×H) | 1200×900×1100 mm | Yes - compact or extended layout |
Applications
- Printing industry: book covers, posters, business cards, photo books
- Packaging: folding cartons, corrugated boxes, labels
- Construction materials: aluminum composite panels, PVC ceiling boards
- Advertising: roll-up banners, billboards, decals
- Customizable for curved or rigid substrates (with manual feed table attachment)
Customization Options
This laminating machine can be tailored to your exact production needs:
- Roller hardness - customizable Shore A value (30°-90°)
- Safety guard - customizable with emergency stop rope or light curtain
- Automatic film cutter - customizable for roll-to-sheet lamination
- Dust removal system - customizable with ionizing bar or vacuum
- Color & branding - customizable paint (any RAL) + OEM logo
- Control system - customizable PLC brand ( Delta / Wecon)
Key Features
- Bubble-free lamination - pressure-balanced roller design
- Digital temperature display - ±1°C accuracy
- Adjustable roller pressure - handwheel + locking mechanism
- Reverse function - for removing misaligned materials
- Foot pedal control - hands-free operation (optional, customizable)
- Energy-saving mode - heating standby when not laminating
- Quick roller change - detachable side frame design
Support and Services
- Pre-sale testing - laminate your sample for free (customizable number of samples)
- Installation video - included (customizable with voiceover in your language)
- Remote support - WhatsApp / TeamViewer (customizable response time SLA)
- Spare parts availability - 8+ years (customizable parts kit upon order)
- On-site training - available at extra cost (customizable duration: 1-5 days)
Packing and Shipping
- Packing - Stretch film + foam padding + export-grade plywood case (customizable with shockwatch indicator)
- Shipping - FOB / CIF / DDP (customizable port: Shanghai / Shenzhen / Ningbo / Qingdao)
- Lead time:
- Standard: 15-20 working days
- Customizable express: 7-10 working days (additional charge)
- Documents - Commercial invoice, packing list, CE declaration (customizable certificate: UL / CSA upon request)
Frequently Asked Questions
Q1: Can this machine laminate double-sided in one pass?
A: Not on standard model. However, we offer customizable dual-unwinding stations for simultaneous top and bottom lamination.
Q2: What if my material is thicker than 5 mm?
A: Roller gap is customizable up to 15 mm. Please specify your max thickness before ordering.
Q3: Do you support cold lamination only?
A: Yes - heating system can be disabled or completely removed. Customizable no-heat version available at lower cost.
